Flagship — Digital Audio Matrix

dMix 128

A 128×128 digital engine with independent channel routing, web-based control from any HTML5 browser, and industrial-grade components built to run unattended, 24/7.

Request a spec sheet Compare the line

Violet Audio dMix 128 digital audio matrix, rear I/O panel

128×128

Routing Matrix

0.3ms

Analog I/O Latency

115dB

Dynamic Range

Dual

Redundant PSU

Every Port, Mapped

dMix 128 rear panel with every input, output, and network port labeled — 32 XLR inputs, 24 XLR outputs, 2× AES/EBU I/O, MADI, USB-A/C, DisplayPort, and dual dNet ports for cascading units — every connection lives on one 3U frame.

Signal Path

Analog / AES / MADI / Dante ^† → Gate · Comp · Parametric EQ · De-esser · M-Comp · Saturation → 128×128 matrix, sample-accurate → Analog / AES / dNet

† Dante™ via optional card.

The Control Surface

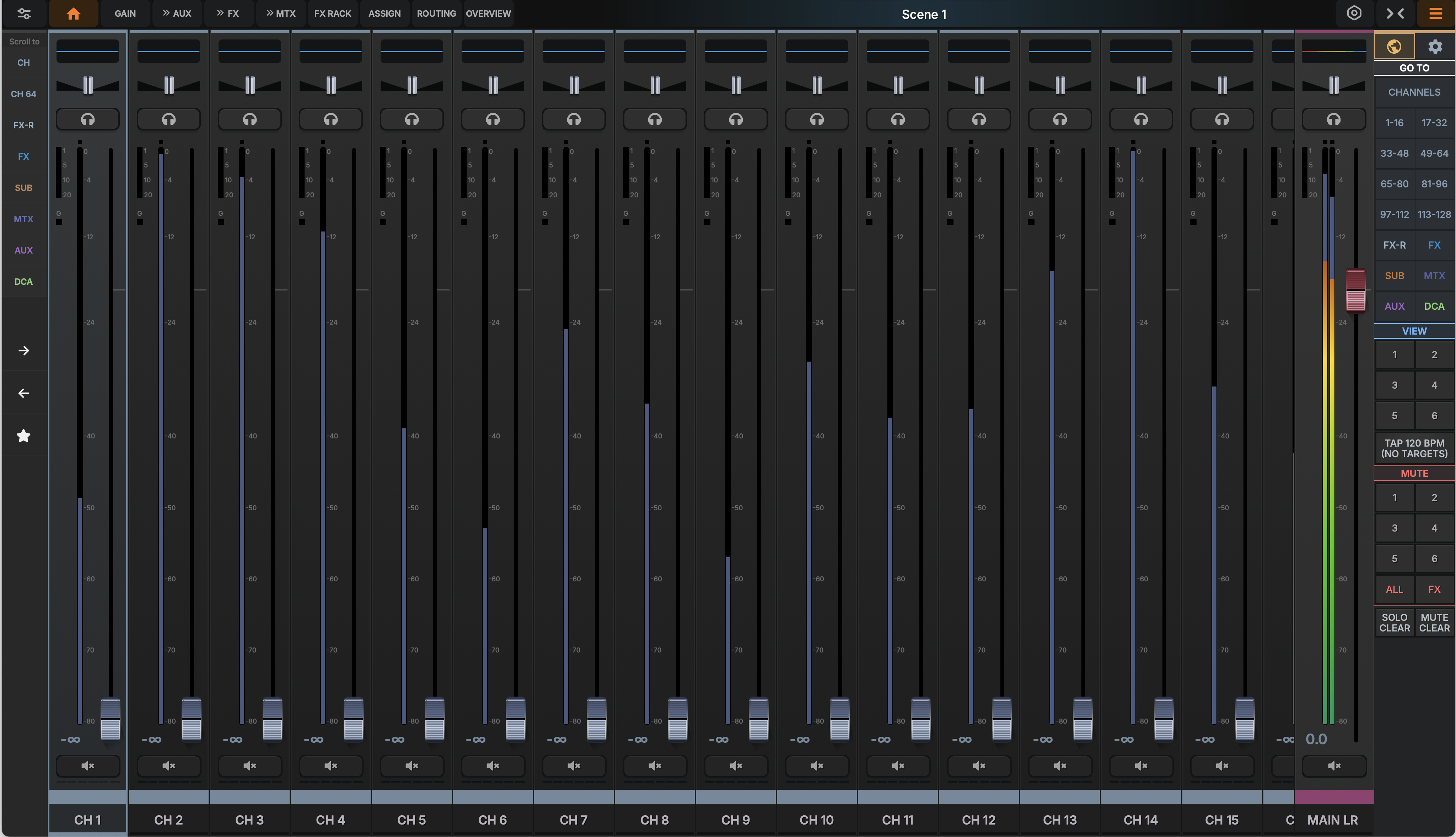

dMix 128 web-based mixing control software, full channel fader bank — Up to 128 channels of faders, routing, and metering in one HTML5 window — no app to install, no dongle, no license server.

Every Processing Block, in Detail

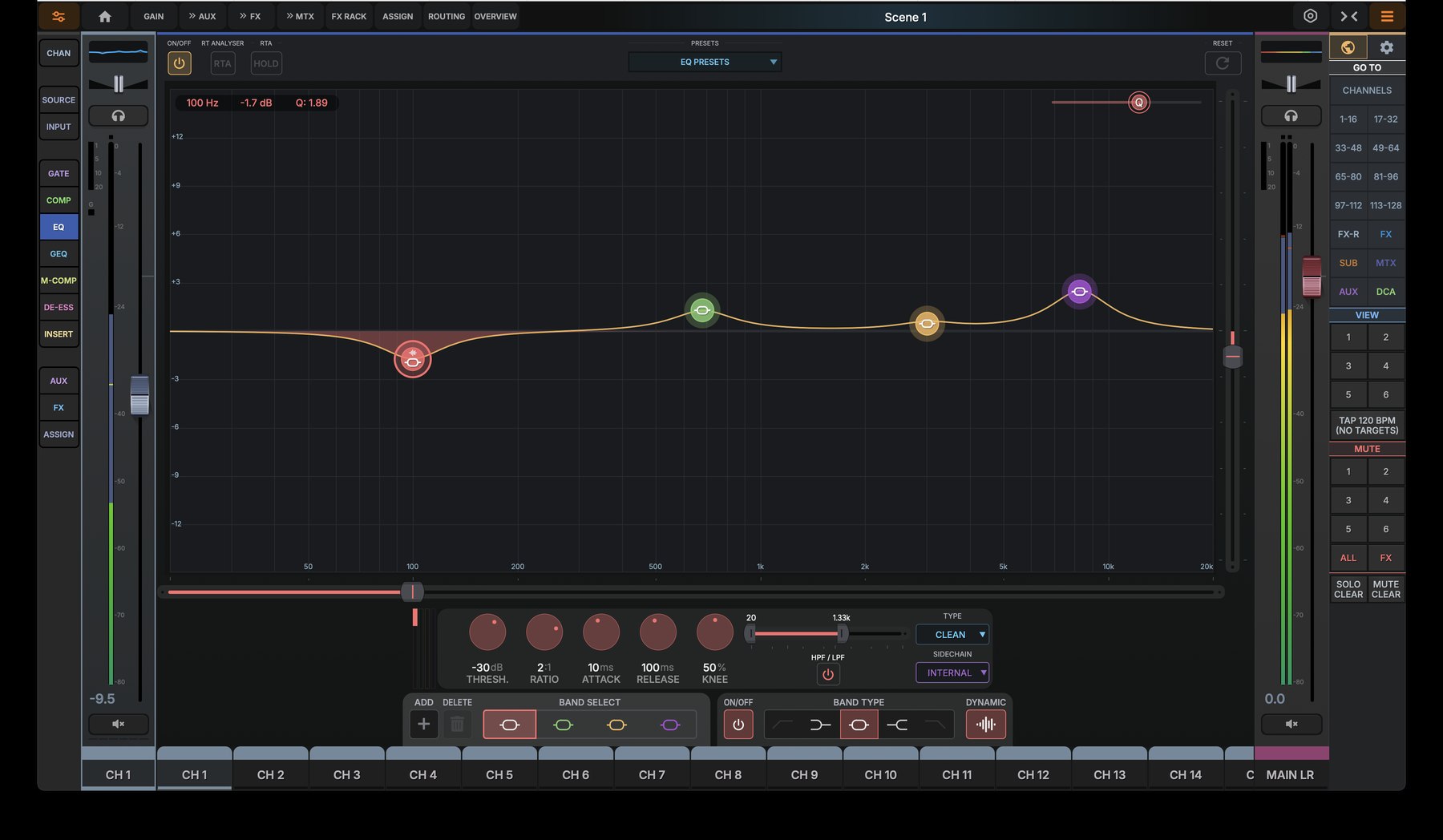

dMix 128 parametric EQ plugin screen — **Parametric EQ**4-band, expandable to 8, with type and dynamic-band controls per point

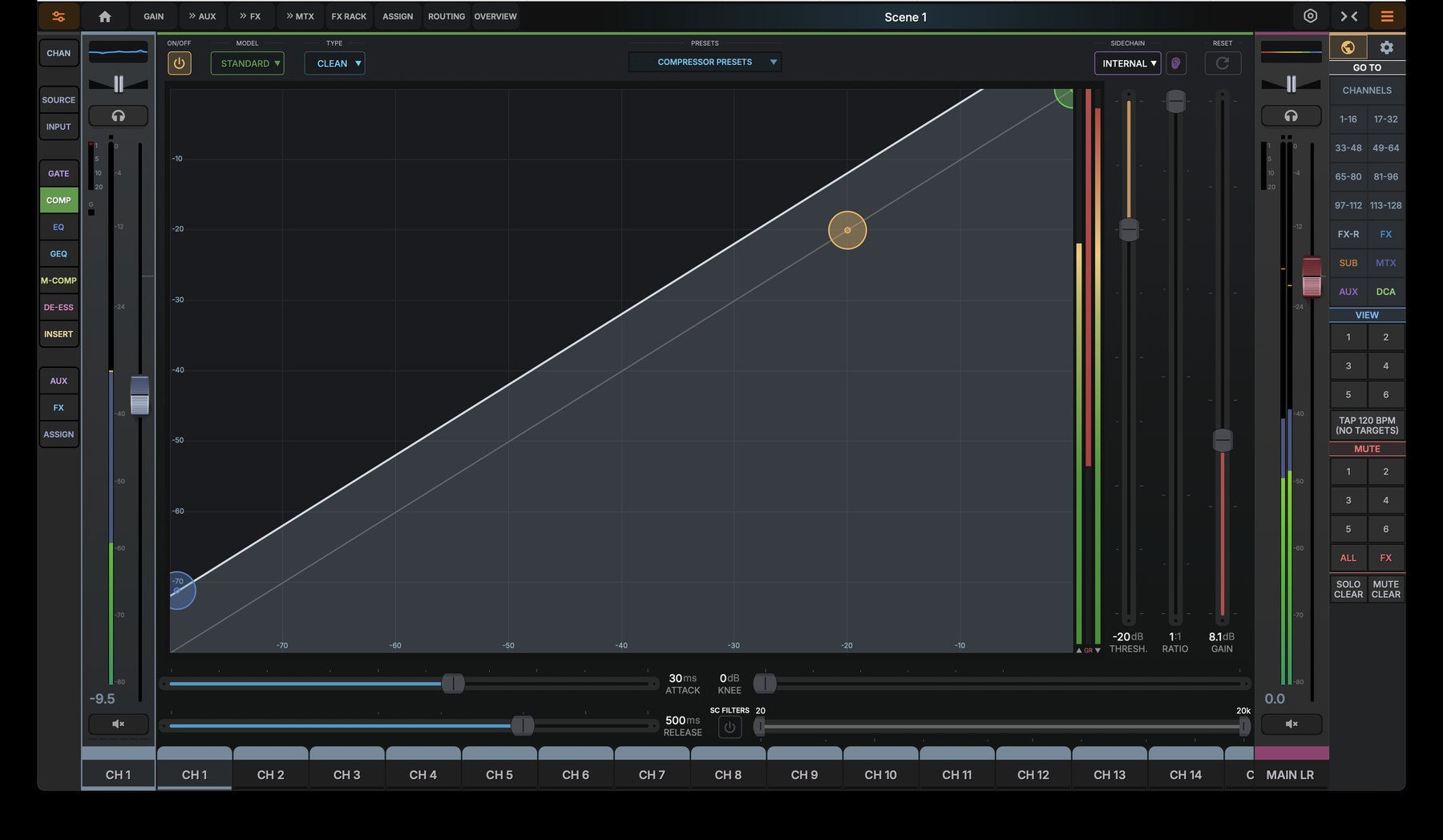

dMix 128 standard compressor plugin screen — **Compressor — Standard**Threshold, ratio, attack, release, and gain on an interactive curve

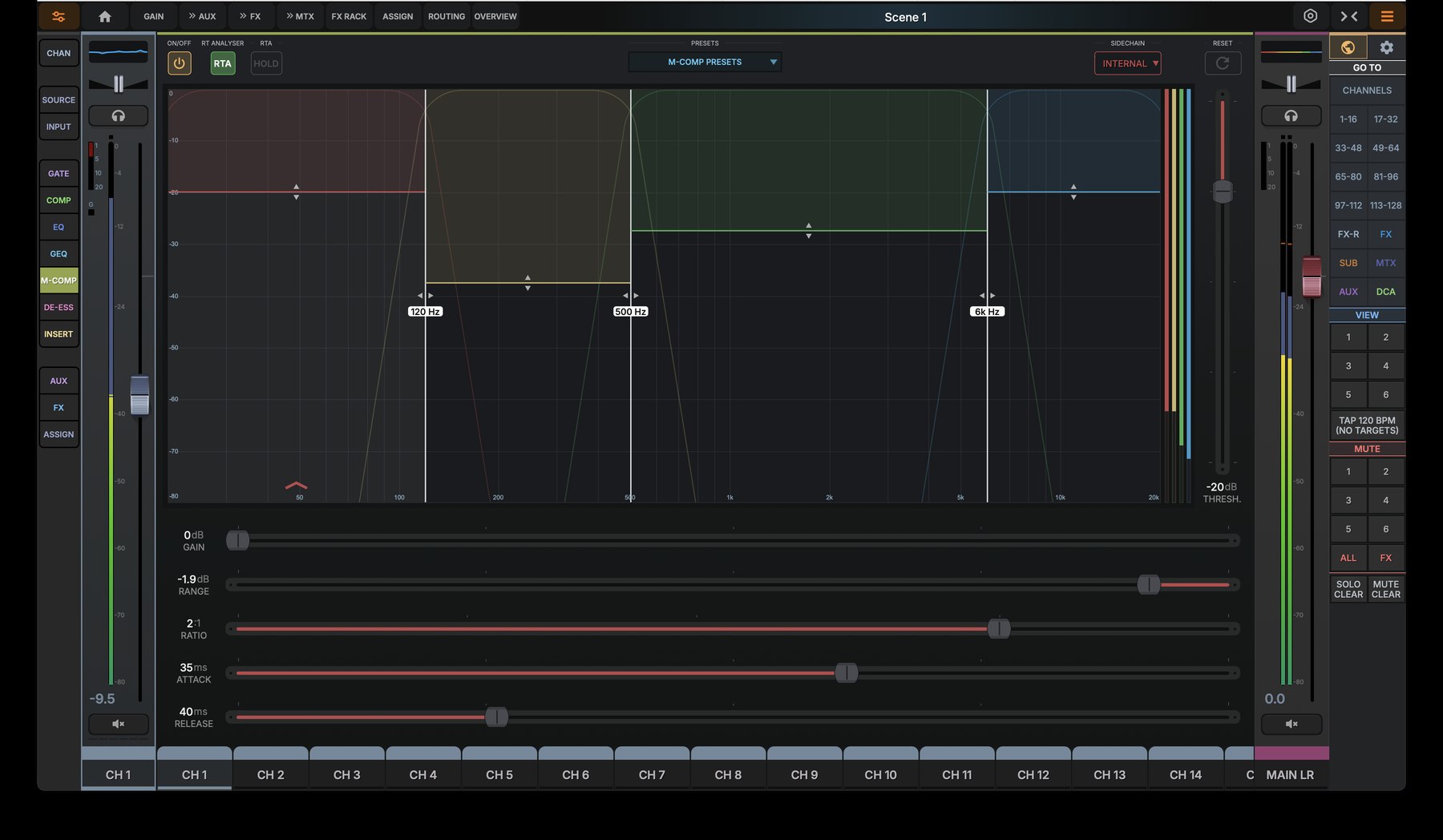

dMix 128 multiband compressor plugin screen — **Multiband Compressor**4-band crossover with independent gain, ratio, attack, and release

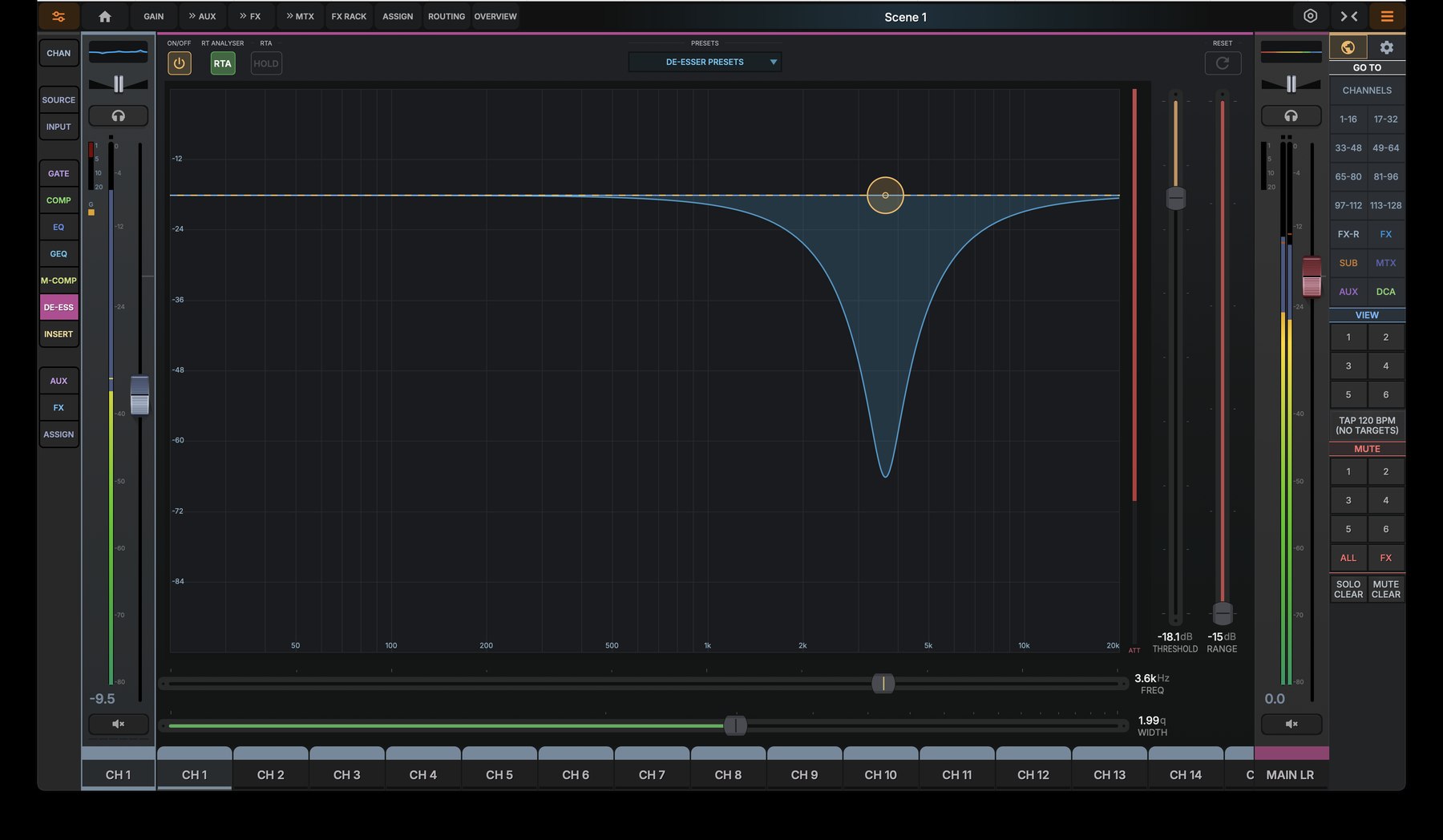

dMix 128 de-esser plugin screen — **De-Esser**Frequency-targeted sibilance control with threshold and range

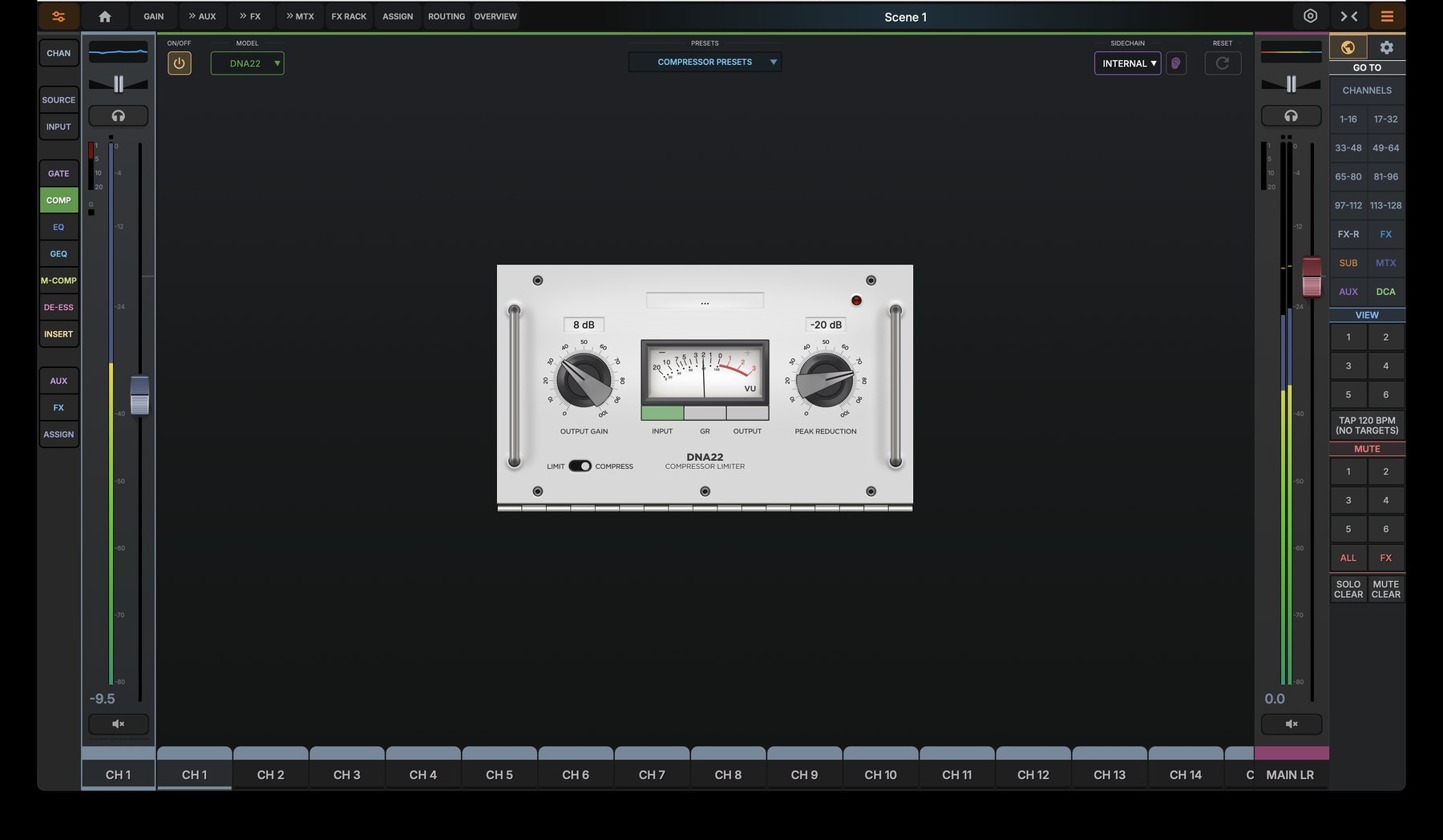

dMix 128 compressor plugin, DNA22 vintage model — **Compressor — DNA22 Model**A vintage-voiced compressor character, selectable per channel

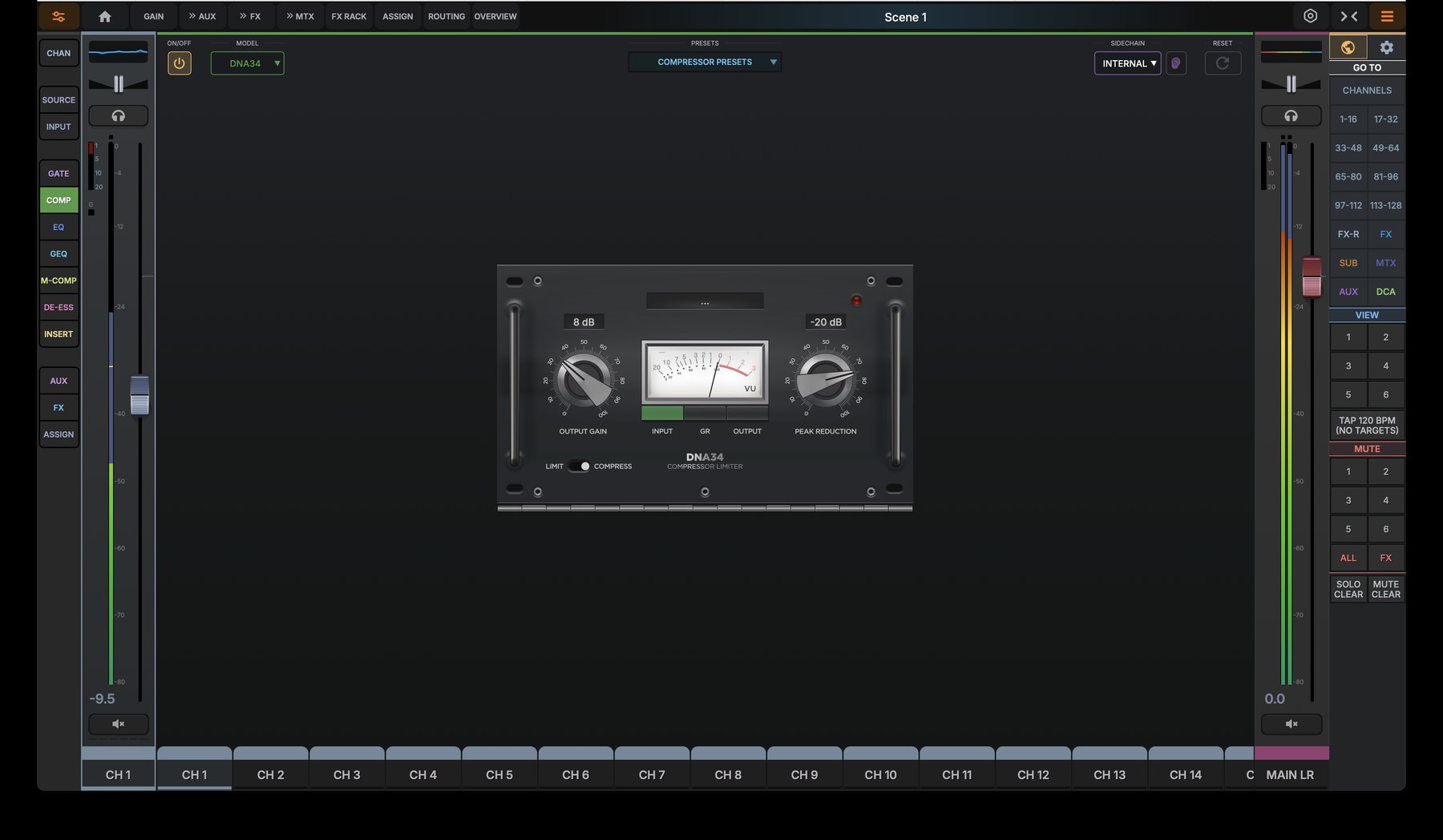

dMix 128 compressor plugin, DNA34 vintage model — **Compressor — DNA34 Model**A second selectable compressor character for a different feel

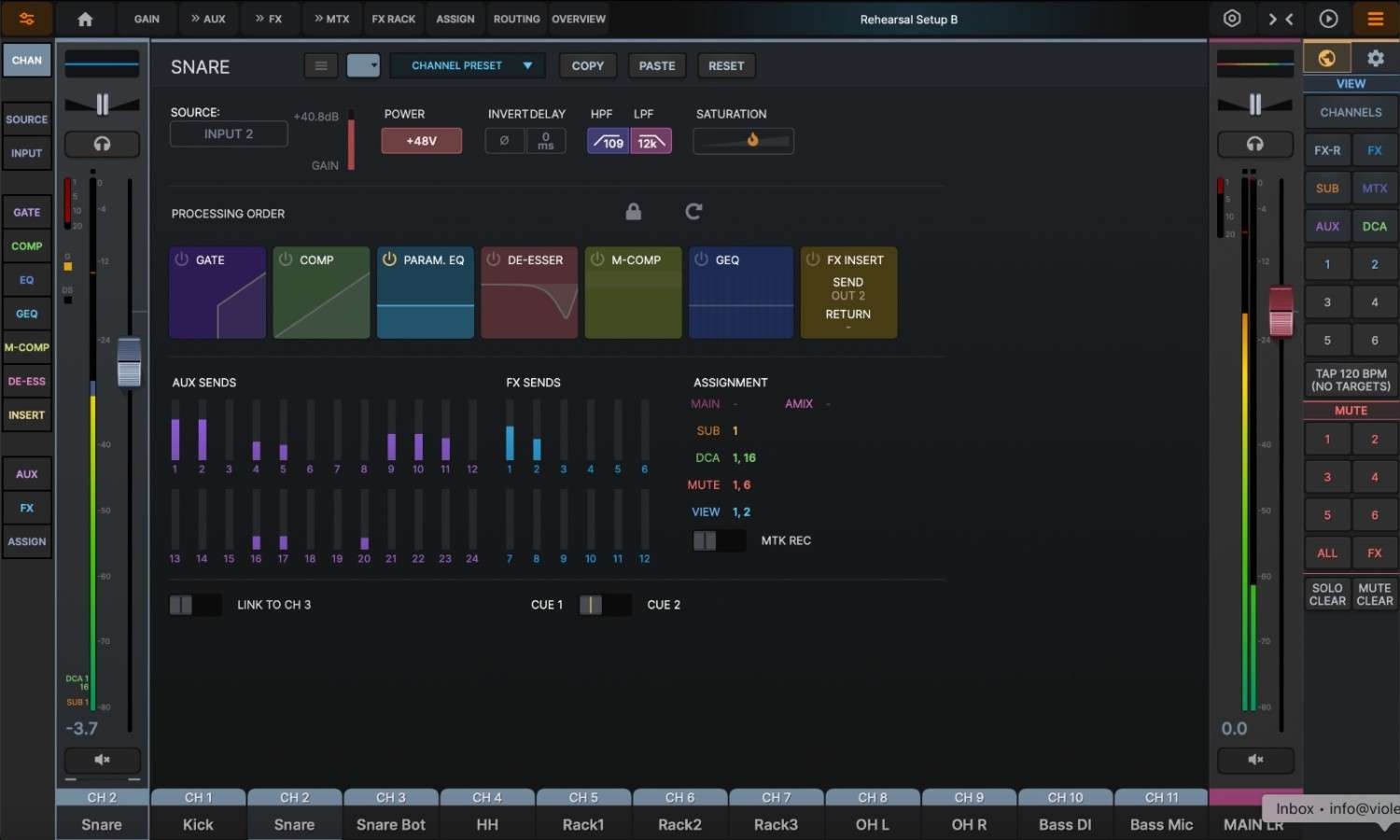

dMix control software channel strip showing the full processing chain — **Full channel processing.** Gate, compressor, parametric EQ, de-esser, multiband compressor, saturation, and 31-band GEQ — reorderable per channel, from any HTML5 browser.

Xilinx Zynq system-on-chip DSP board inside the dMix 128 — **Built on a Xilinx Zynq SoC.** The same DSP platform lineage that shaped the Ui24 signal path, engineered by the team behind it.

Analog I/O

Inputs: 32 × XLR balanced
Outputs: 24 × XLR balanced
AES I/O: 2 in / 2 out
Input impedance: 2.86 kΩ
Output impedance: 50 Ω
Max input level: 28 dBu
Max output level: 24 dBu
THD (in / out): .001% / .002%

Processing

Parametric EQ: 4-band, to 8
Graphic EQ: 31-band
Dynamics: Gate · Comp · MB Comp
Character: De-esser · Saturation
Filters: HP / LP, selectable slope
Headphone amps: ×2
Expansion: dMix I/O slot

Latency, Network & Control

Analog in → out: 0.3 ms
dMix → dMix (AES67): 0.25 ms
AES67 → Dante: 2 ms
Network: Dante · AES67 · MADI
Control: HTML5, no app
3rd-party control: Crestron · Q-Sys
Warranty: Up to 6 yrs

Sound engineer with a Violet Audio dMix 128 on a live event stage

In the Field

On stage, on air, on the road.

Ready to spec a dMix 128 into your rig?

Request a spec sheet See the full line
